brown fused alumina BFA

Brown fused alumina P20

Brown Aloxide

Brown Aloxide (Brown Fused Alumina) contains High TiO2, which makes it extremely durable. Brown aloxide is the perfect material specifically manufactured for general abrasive applications in bonded abrasive tools and lapping and polishing processes. While aluminum oxide has a lower hardness and abrasive capacity than diamond, boron carbide, and silicon carbide, it is widely used for grinding ferrous materials, finishing tough and hard materials, filling up ceramic parts when the processing cost is important. Brown aloxide could also use it in ceramic except for normal usage.

BROWN ALOXIDE

A GRADE

CHEMICAL CONPOSITION(%)		PHYSICAL PROPERTIES
Al2O3	≥95.0%	S.G	3.90g/cm3
Fe2O3	≤0.3%	B.D	1.53-1.99g/cm3
SiO2	≤1.0%	MOHS	9.0
TiO2	1.7-3.4%

B GRADE

CHEMICAL CONPOSITION(%)		PHYSICAL PROPERTIES
Al2O3	85-92%	S.G	3.50-3.90g/cm3
Fe2O3	8-15%	B.D	1.30-1.90g/cm3
SiO2	2-5%	MOHS	7.0-9.0
TiO2	3-5%

C GRADE

CHEMICAL CONPOSITION(%)		PHYSICAL PROPERTIES
Al2O3	70-80%	S.G	3.50-3.90g/cm3
Fe2O3	8-15%	B.D	1.30-1.90g/cm3
SiO2	2-5%	MOHS	7.0-9.0
TiO2	3-5%

D GRADE

CHEMICAL CONPOSITION(%)		PHYSICAL PROPERTIES
Al2O3	60-70%	S.G	3.50-3.90g/cm3
Fe2O3	8-15%	B.D	1.30-1.90g/cm3
SiO2	2-5%	MOHS	7.0-9.0
TiO2	3-5%

E GRADE

CHEMICAL CONPOSITION(%)		PHYSICAL PROPERTIES
Al2O3	50-60%	S.G	3.50-3.90g/cm3
Fe2O3	12-20%	B.D	1.30-1.90g/cm3
SiO2	15-25%	MOHS	7.0-9.0
TiO2	4-6%	/	/

Main Applications of Brown Aloxide:

Bonded Abrasives and Coated abrasives
Refractory,casting,foundry,and painting etc
Wet and dry blast media,grinding and polishing etc
PCB plate(PCBA,FPC,LED) blasting
Polishing wax, Grinding stones, polishing pads, etc
Removal of scale, rust and old coatings,Surface Treatment etc
Ceramics
Grinding wheels, Cut wheels, cutting disc etc
Brake and friction linings
Sponge media

Padding,filler etcPacking

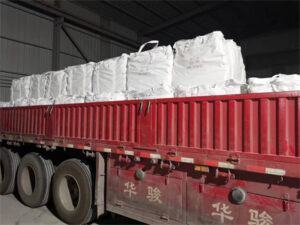

25KGS PVC BAGS	1MT BIG BAG	25KGS PVC BAGS+1MT BIG BAG	25KGS PVC BAGS+PALLET

Production lines Show

Brown Aloxide -5-Brown Fused Alumina - HAIXU

Brown Aloxide -6-Brown Fused Alumina - HAIXU

Brown Aloxide -7-Brown Fused Alumina - HAIXU

Brown Aloxide -8-Brown Fused Alumina - HAIXU

Brown Aloxide -9-Brown Fused Alumina - HAIXU

Brown Aloxide -10-Brown Fused Alumina - HAIXU

Available Sizes

FEPA	F12 F14 F16 F20 F22 F24 F30 F36 F40 F46 F54 F60 F70 F80 F90 F100 F120 F150 F180 F220 F230 F240 F280 F320 F360 F400 F500 F600 F800
JIS	#12 #14 #16 #20 #24 #30 #36 #46 #54 #60 #70 #80 #90 #100 #120 #150 #180 #220 #240 #280 #320 #360 #400# #500 #600 #700 #800 #1000 #1200 #1500 #2000
P	P12 P16 P20 P24 P30 P36 P40 P50 P60 P80 P100 P120 P150 P180 P220 P240 P280 P320 P360 P400 P500 P600 P800 P1000 P1200 P1500 P2000
TOCT	4# 3# M28 M20 M14 M10 M7

Weight	1000 kg
Dimensions	100 × 100 × 100 cm
