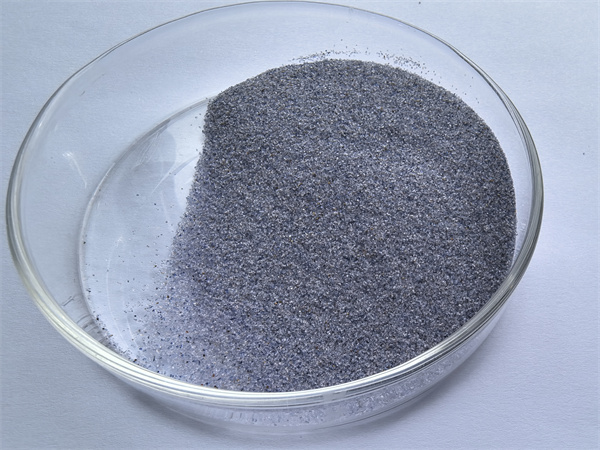

Blue single crystal fused aluminum oxide
Blue single crystal fused aluminum oxide is made in high purity α-al2O3,and fused at high temperature in the furnace.It has the characters of high toughness and hardness.As the crystalline grow very well and stackup one by one very well,the cutting and the grinding in the working is very sharp and long life.Comparing with other abrasives,the performance of blue single crystal aluminum oxide is higher and the surface is greater.
Physial characters of blue single crystal fused aluminum oxide
| Specific Gravity | ≥3.98g/cm3 |
| Crystalline | α-Al2O3 |
| Melting point | ≥2050℃ |
| Hardness | 22Gpa |
| Bulk Density | 1.49-1.90g/cm3 |
| Compressive strength( F46-F60) | 31N-26N |
Bulk density of blue single crystal fused aluminum oxide
| Size | Bulk Density(g/cm3) | Size | Bulk Density(g/cm3) |
| 16 | 1.70-1.87 | 70 | 1.67-1.81 |
| 20 | 1.74-1.87 | 80 | 1.67-1.81 |
| 24 | 1.78-1.87 | 90 | 1.67-1.78 |
| 30 | 1.76-1.87 | 100 | 1.61-1.75 |
| 36 | 1.73-1.87 | 120 | 1.58-1.72 |
| 46 | 1.69-1.85 | 150 | 1.54-1.68 |
| 54 | 1.69-1.85 | 180 | 1.52-1.63 |
| 60 | 1.68-1.83 | 220 | 1.49-1.63 |
Blue single crystal fused aluminum oxide typical chemical composition %
| Al2O3 | ≥99.0 |
| Fe2O3 | 0.05±0.02 |
| SiO2 | ≤0.04 |
| CaO | ≤0.05 |
| MgO | ≤0.02 |
| K2O | ≤0.02 |
| Na2O | ≤0.02 |
| TiO2 | 0.38±0.04 |
| ZrO2 | 0.2±0.03 |
Main applications of blue single crystal fused aluminum oxide
–Resin Chips
–Belts
-Ceramics
–Grinding wheels
–Precision grinding
etc
Blue single crystal fused aluminum oxide production lines
