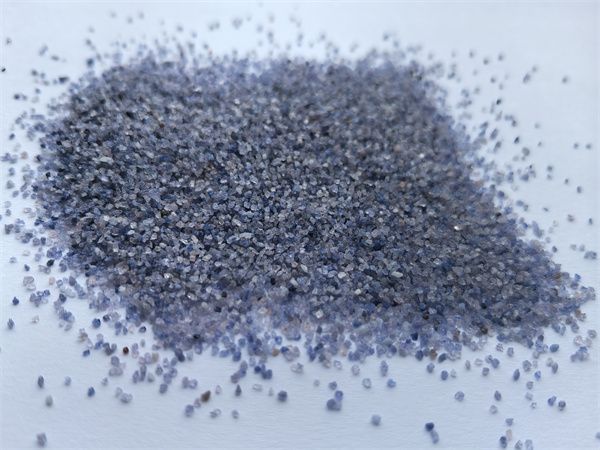

Blue single crystal electrocorundum
Blue single crystal electrocorundum is made in high purity α-al2O3,and fused at high temperature in the furnace.It has the characters of high toughness and hardness.As the crystalline grow very well and stackup one by one very well,the cutting and the grinding in the working is very sharp and long life.Comparing with other abrasives,the performance of blue single crystal electrocorundum is higher and the surface is greater.
Physial characters of blue single crystal electrocorundum
| Specific Gravity | ≥3.98g/cm3 |
| Crystalline | α-Al2O3 |
| Melting point | ≥2050℃ |
| Hardness | 22Gpa |
| Bulk Density | 1.49-1.90g/cm3 |
| Compressive strength( F46-F60) | 31N-26N |
Bulk density of blue single crystal electrocorundum
| Size | Bulk Density(g/cm3) | Size | Bulk Density(g/cm3) |
| 16 | 1.70-1.87 | 70 | 1.67-1.81 |
| 20 | 1.74-1.87 | 80 | 1.67-1.81 |
| 24 | 1.78-1.87 | 90 | 1.67-1.78 |
| 30 | 1.76-1.87 | 100 | 1.61-1.75 |
| 36 | 1.73-1.87 | 120 | 1.58-1.72 |
| 46 | 1.69-1.85 | 150 | 1.54-1.68 |
| 54 | 1.69-1.85 | 180 | 1.52-1.63 |
| 60 | 1.68-1.83 | 220 | 1.49-1.63 |
Blue single crystal electrocorundum typical chemical composition %
| Al2O3 | ≥99.0 |
| Fe2O3 | 0.05±0.02 |
| SiO2 | ≤0.04 |
| CaO | ≤0.05 |
| MgO | ≤0.02 |
| K2O | ≤0.02 |
| Na2O | ≤0.02 |
| TiO2 | 0.38±0.04 |
| ZrO2 | 0.2±0.03 |
Main applications of blue single crystal electrocorundum
–Resin Chips
–Belts
-Ceramics
–Grinding wheels
–Precision grinding
etc
Blue single crystal electrocorundum production lines
